        PMON Version 2.0.1
        [Length=0x3a968 CRC=0xe6177528]
        Copyright 2006
/===================================================/

128MB Detected

Ethernet Failover Mode Disabled
Serial Number = WAO590****
MAC Address 1= 00:0D:5D:0D:**:**
Kernel Image Length = 0x65d000, CRC = 0x5a64c2a8
-
CRC Check passed
Image Started At Address 0xbf000000.
Image Length = 6672384 (0x65d000).
|
CRC Check passed
Image Started At Address 0x80020000.
Image Length = 6672384 (0x65d000).
boot: root=/dev/mtdblock1 console=ttySC1,9600
CPU revision is: 00002242
Primary instruction cache 8kb, linesize 16 bytes
Primary data cache 4kb, linesize 16 bytes
Linux version 2.4.12 (builder@builder-sx.raritan.com)
(gcc version 2.95.3 19991030 (prerelease))
#472 Mon Nov 5 19:14:28 EST 2012
TX3927 -- CRIR:39270040 CCFG:0006203b PCFG:0ffc700d
TX3927 PCIC -- DID:000a VID:102f RID:07 Arbiter:Internal
TJSYS JMR-TX3927 (Rev 3) --- IOC(Rev 2) DIPSW:0,0,0,0
TX39XX D-Cache WriteThrough.
Determined physical RAM map:
memory: 07ffffe8 @ 00000000 (usable)
setup.c -> init ramdisk
InitRD start - -2144972800 end --2140681878Initial
ramdisk at: 0x80265000 (4290922 bytes)
On node 0 totalpages: 32767
zone(0): 4096 pages.
zone(1): 28671 pages.
zone(2): 0 pages.
Kernel command line: root=/dev/mtdblock1 console=ttySC1,9600
Calibrating delay loop... 132.30 BogoMIPS
Memory: 122272k/131068k available (1933k kernel code,
8796k reserved, 4351k data, 224k init)
Dentry-cache hash table entries: 16384 (order: 5, 131072 bytes)
Inode-cache hash table entries: 8192 (order: 4, 65536 bytes)
Mount-cache hash table entries: 2048 (order: 2, 16384 bytes)
Buffer-cache hash table entries: 4096 (order: 2, 16384 bytes)
Page-cache hash table entries: 32768 (order: 5, 131072 bytes)
Checking for 'wait' instruction...  available.
POSIX conformance testing by UNIFIX
PCI: Probing PCI hardware
pci.c mips_io_port_base is 0xB5000000
PCI: IO 0x00000000-0x00ffffff MEM 0x08000000-0x0fffffff
Scanning bus 00
Found 00:68 [10ec/8139] 000200 00
Found 00:88 [13a8/0158] 000700 00
Found 00:90 [13a8/0158] 000700 00
Found 00:98 [13a8/0158] 000700 00
Found 00:a0 [13a8/0158] 000700 00
Fixups for bus 00
Bus scan for 00 returning with max=00
Linux NET4.0 for Linux 2.4
Based upon Swansea University Computer Society NET3.039
Starting kswapd
JFFS2 version 2.1. (C) 2001 Red Hat, Inc.,
designed by Axis Communications AB.
Exar's Serial Driver for the PCI Family
of UARTs version 3.30 (2004-09-29)
with SHARE_IRQ SERIAL_PCI enabled
Serial driver version 5.05c (2001-07-08) with
MANY_PORTS SHARE_IRQ SERIAL_PCI enabled
TXx927 Serial driver version 0.20
ttySC00 at 0xfffef300 (irq = 22) is a TXx927 SIO
ttySC01 at 0xfffef400 (irq = 23) is a TXx927 SIO
request_module[parport_lowlevel]: Root fs not mounted
lp: driver loaded but no devices found
MIPS Generic Real Time Clock Driver v0.1
block: 128 slots per queue, batch=16
RAMDISK driver initialized: 16 RAM disks of 32768K size 1024 blocksize
PPP generic driver version 2.4.1
toshiba_tx: ioremap is bf000000
toshiba_tx: ioremap is be000000
Number of erase regions: 1
Primary Vendor Command Set: 0002 (AMD/Fujitsu Standard)
Primary Algorithm Table at 0040
Alternative Vendor Command Set: 0000 (None)
No Alternate Algorithm Table
Vcc Minimum: 2.7 V
Vcc Maximum: 3.6 V
No Vpp line
Typical byte/word write timeout: 128 オs
Maximum byte/word write timeout: 1024 オs
Typical full buffer write timeout: 128 オs
Maximum full buffer write timeout: 4096 オs
Typical block erase timeout: 1024 オs
Maximum block erase timeout: 16384 オs
Chip erase not supported
Device size: 0x800000 bytes (8 MiB)
Flash Device Interface description: 0x0001
  - x16-only asynchronous interface
Max. bytes in buffer write: 0x20
Number of Erase Block Regions: 1
  Erase Region #0: BlockSize 0x10000 bytes, 128 blocks
Amd/Fujitsu Extended Query Table v1.3 at 0x0040
number of JEDEC chips: 1
phymap 0 cfi_probe: mymtd is 81210210
toshiba_tx flash device(Flash-1): 1000000 at 1f000000
Creating 0 MTD partitions on "Flash-1":
Number of erase regions: 1
Primary Vendor Command Set: 0002 (AMD/Fujitsu Standard)
Primary Algorithm Table at 0040
Alternative Vendor Command Set: 0000 (None)
No Alternate Algorithm Table
Vcc Minimum: 2.7 V
Vcc Maximum: 3.6 V
No Vpp line
Typical byte/word write timeout: 128 オs
Maximum byte/word write timeout: 1024 オs
Typical full buffer write timeout: 128 オs
Maximum full buffer write timeout: 4096 オs
Typical block erase timeout: 1024 オs
Maximum block erase timeout: 16384 オs
Chip erase not supported
Device size: 0x800000 bytes (8 MiB)
Flash Device Interface description: 0x0001
  - x16-only asynchronous interface
Max. bytes in buffer write: 0x20
Number of Erase Block Regions: 1
  Erase Region #0: BlockSize 0x10000 bytes, 128 blocks
Amd/Fujitsu Extended Query Table v1.3 at 0x0040
number of JEDEC chips: 1
phymap 1 cfi_probe: mymtd is 81210310
toshiba_tx flash device(Flash-2): 1000000 at 1e000000
Creating 0 MTD partitions on "Flash-2":
NET4: Linux TCP/IP 1.0 for NET4.0
IP Protocols: ICMP, UDP, TCP, IGMP
IP: routing cache hash table of 512 buckets, 4Kbytes
TCP: Hash tables configured (established 8192 bind 8192)
ip_conntrack (1023 buckets, 8184 max)
ip_tables: (c)2000 Netfilter core team
NET4: Unix domain sockets 1.0/SMP for Linux NET4.0.
rd_load_image()
RAMDISK: Compressed image found at block 0
Freeing initrd memory: 4190k freed
VFS: Mounted root (ext2 filesystem).
Algorithmics/MIPS FPU Emulator v1.5
Register /dev/phyctrl succeeded
8139too Fast Ethernet driver 0.9.19
setMacAddr 1 set etheraddr
EthernetAddr: [     00:0d:5d:0d:**:**]
eth0: RealTek RTL8139 Fast Ethernet at 0xa8004000, 00:0d:5d:0d:**:**, IRQ 19
eth0: Setting half-duplex based on auto-negotiated partner ability 0000.
eth0: Setting half-duplex based on auto-negotiated partner ability 0000.
eth0: Setting half-duplex based on auto-negotiated partner ability 0000.

Username: admin
Password:
Failed to connect to server. Please try again momentarily.
Username: admin
Password:
Authentication successful.
System is in reset state.
Please enter new administrator password.
New Password:
Verify New Password:

Setting password...
User admin : Password Saved
--------------------------------------------------------------------------------

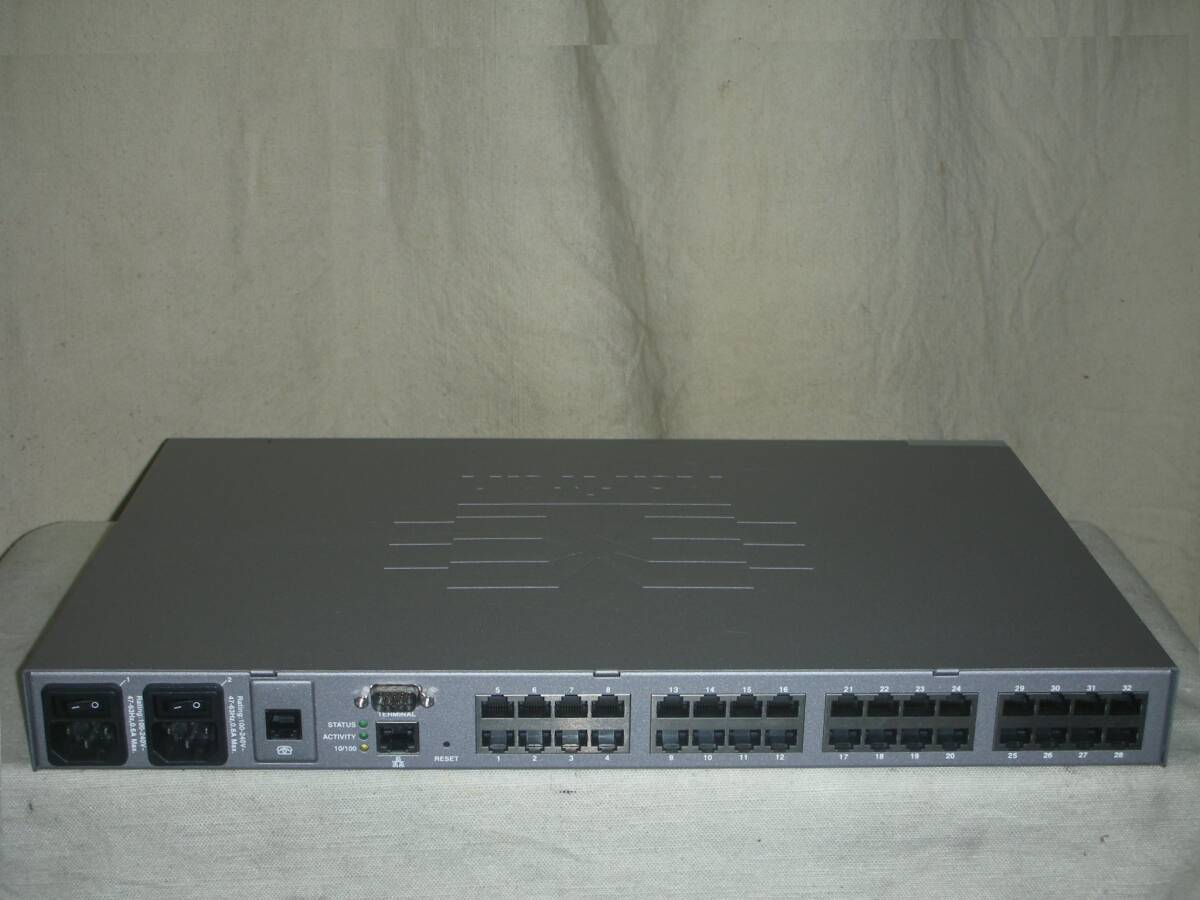

Welcome to the DominionSX.  [Model: SX32]
UnitName:DominionSX         FirmwareVersion:3.5.0.5.5      Serial:WAO590****
IP Address:192.168.0.192    UserIdletimeout:10min
--------------------------------------------------------------------------------

Port Port                Port Port                Port Port
No.  Name                No.  Name                No.  Name
1  - Port1 [U]           2  - Port2 [U]           3  - Port3 [U]
4  - Port4 [U]           5  - Port5 [U]           6  - Port6 [U]
7  - Port7 [U]           8  - Port8 [U]           9  - Port9 [U]
10 - Port10 [U]          11 - Port11 [U]          12 - Port12 [U]
13 - Port13 [U]          14 - Port14 [U]          15 - Port15 [U]
16 - Port16 [U]          17 - Port17 [U]          18 - Port18 [U]
19 - Port19 [U]          20 - Port20 [U]          21 - Port21 [U]
22 - Port22 [U]          23 - Port23 [U]          24 - Port24 [U]
25 - Port25 [U]          26 - Port26 [U]          27 - Port27 [U]
28 - Port28 [U]          29 - Port29 [U]          30 - Port30 [U]
31 - Port31 [U]          32 - Port32 [U]
Current Time: Wed Oct 22 02:54:18 2025

admin > show version

Version Information :
Firmware Version : 3.5.0.5.5
Kernel Version : 2.4.12
PMON Version: 2.0.1
RSC Version: 3.0.0.5.72
admin > show all

Dominion SX32 [128Mb]   Serial: WAO590****
Current time: 2025-10-22 02:57:25
Power Supply 1: Good
Power Supply 2: Good
Supporting software:
        OpenSSH_4.3p2, OpenSSL 0.9.7m 23 Feb 2007
        HTTP Server version: Apache/2.2.22 (Unix)
        HTTP Server built:   Jul  6 2012 15:39:30
        TELNET Linux NetKit 0.17
-----------------------------------------------------------
Date /Time Settings:
        Date : 2025-10-22 02:57:27
        Timezone : 13
Version Information :
Firmware Version : 3.5.0.5.5
Kernel Version : 2.4.12
PMON Version: 2.0.1
RSC Version: 3.0.0.5.72
Overall Upgrade History:
boot-count           Fri Dec 31 19:02:37 1999

Network Settings
        Name: DominionSX
        Domain:
        CSC Port: 5000
        Discover Port: 5000
        Ethernet Interface: lan1
                MAC: 00:0d:5d:0d:**:**
                DHCP Client: true
                IP: 192.168.0.192
                Net Mask: 255.255.255.0
                Gateway: 192.168.0.192
Kernel IP routing table
Destination     Gateway         Genmask         Flags Metric Ref    Use Iface
192.168.0.0     0.0.0.0         255.255.255.0   U     0      0        0 eth0
0.0.0.0         192.168.0.192   0.0.0.0         UG    0      0        0 eth0
Firewall Enabled: false
Chain INPUT (policy ACCEPT)
target     prot opt source               destination
ACCEPT     0    --  127.0.0.1            0.0.0.0/0

Chain FORWARD (policy ACCEPT)
target     prot opt source               destination

Chain OUTPUT (policy ACCEPT)
target     prot opt source               destination
IPForwarding Enabled: true
Modem Settings
        Dialin Enabled: true
        Access Mode: All
        Server Address: 10.0.0.1
        Client Address: 10.0.0.2
        Dialback: false
DPA Mode: Normal
Username String Access : false
Port Access Mode: share
        Permitted users may access an already occupied port.
Unauthorized Port Access Settings :
        Enable : 0
Port number 1:
        Name: Port1
        BPS: 9600
        Parity: 0
        Flow control: 0
        RSC Terminal Emulation: VT100
        RSC Encoding: DEFAULT
        Disconnect: Disabled
        Char Delay : 0 ms
        Line Delay : 0 ms
        Application: RaritanConsole
        Exit String:
        Escape: Control-]
        Sendbreak Duration : 300 ms
        DPA:
                IP: 0.0.0.0
                Telnet Port: 0
                SSH Port: 0
        Always Active: False
        Multiple Writers: Disabled
        Messages suppressed: none

【中略】

Port number 32:
        Name: Port32
        BPS: 9600
        Parity: 0
        Flow control: 0
        RSC Terminal Emulation: VT100
        RSC Encoding: DEFAULT
        Disconnect: Disabled
        Char Delay : 0 ms
        Line Delay : 0 ms
        Application: RaritanConsole
        Exit String:
        Escape: Control-]
        Sendbreak Duration : 300 ms
        DPA:
                IP: 0.0.0.0
                Telnet Port: 0
                SSH Port: 0
        Always Active: False
        Multiple Writers: Disabled
        Messages suppressed: none
Idle Timeout Settings :
        Enable : true
        Timeout : 10 min
User Settings:
        Login : admin
        Name : Administrator
        Info : Default admin user.
        Dialback :
        Group :Admin
        Active : 1

--------
Group Settings
        Name: Admin
        Class: Admin
        Port Sharing: true

【中略】

Kerberos Enabled: false
Security Profile Settings:
        Enable: 0
StrongPassword Settings:
        StrongPasswordRulesEnable : false
        PWUppercaseRequired : true
         PWLowercaseRequired : true
         PWNumberRequired : true
         PWSymbolRequired : true
         PasswordValidityPeriod : 60 Days
         PasswordHistoryDepth : 5
         MinPasswordLength : 8
         MaxPasswordLength : 15
LocalAuthentication Settings:
         Account gets expired if inactive for  : 330 days
LocalAuthentication Settings:
         Number of Retries allowed before a lockout/AccountDeactivation : 3
LocalAuthentication Settings:
         Account gets locked out for : 5 minutes
LocalAuthentication Settings:
        LocalAuthentication Enable status : true
        Ignore CommandCenter Management on Local Port: false
Single Login per User Settings
        Enabled : false
Power Delay Settings :
        Sequence Delay: 2
        Cycle Delay: 5
No power strips configured.
No Power Groups configured.
admin >
